Basic PDU
E01-B18N
Compliance
RoHSPlug Type
IEC 60309 (P+N+E), 250VAC 6 hr IP44Product description

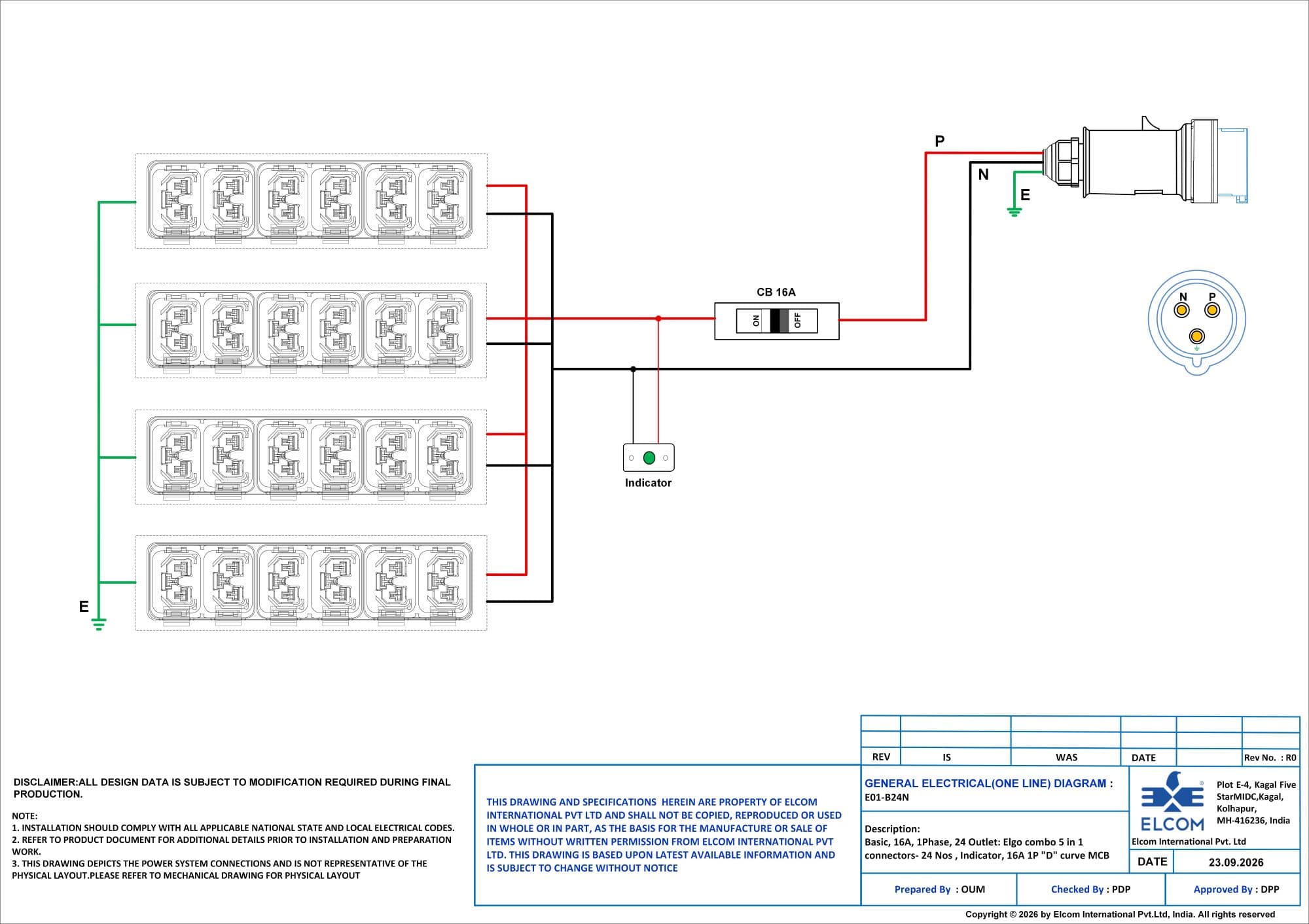

Vertical mounting single phase PDU with 24nos. hybrid 5 in one combo outlet, Protection with 16A “D” curve MCB with safety guard, with LED indicator, FRLS Power cord 2.5 sqmm 3 core 3 meter with 16A 3pin Industrial plug, Colour: Ral 9005 Texture
Specifications
Input
- Nominal Voltage
- 230 VAC
- Rated Voltage
- 200-250 VAC
- Frequency
- 50 Hz / 60Hz
- Input Plug
- 1Φ, 16A, IEC 60309 (P+N+E), 250VAC
- Cord Length
- 3 meters, 45° Angled
- Input Current
- 16A
- Power Rating
- 3.2 kVA at rated voltage 200 VAC, 4 kVA at rated voltage 250 VAC
Output
- Nominal Voltage
- 230 VAC
- Rated Voltage
- 200-250 VAC
- Frequency
- 50 Hz / 60Hz
- Receptacles Configuration
- ELGO Combo Max 5-in-1, 24 Nos (Outlet combination of C13/C15/C15A/C19/C21)
- Over Current Protection
- One (01) x 16A Thermal Magnetic Circuit Breakers, 10kA
Conformance
- Compliance
- CE
- Environmental
- RoHS
- Standards
- IEC 62368-1

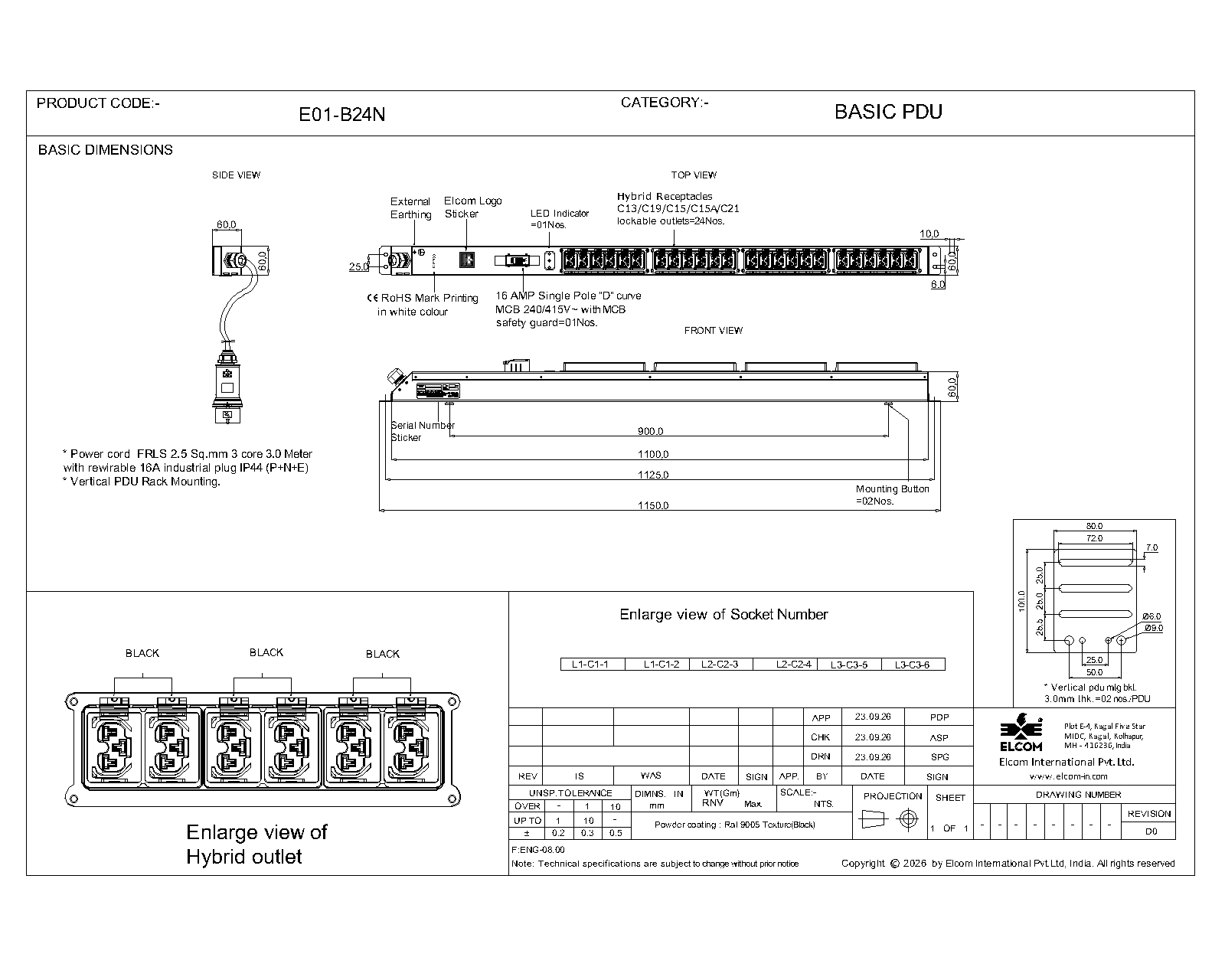

Mechanical
- Dimensions (H × W × D)
- 1150 mm X 60 mm X 60 mm
- Weight
- approx. 4.0Kg
- Toolless Mounting — Centre to Centre
- 1125 mm
- Mounting Configuration
- Zero U / Vertical
- Material
- CRCA
- Colour
- Black (RAL 9005)
Environmental
- Maximum Operating Temperature
- 60°C
- Relative Humidity
- 95 % RH non-condensing
