Basic PDU
E01-C30YC
Outlet Type
30×.png&w=96&q=75)
IEC C13 / C19
IEC C13 / C19Plug Type
IEC 60309 (P+N+E), 250VAC 6 hr IP44Product description
Vertical mounting 32A single phase CE RoHS marked PDU with 30 Outlet (18 Nos. IEC C-13 & 12 Nos. IEC C-19) ,32 A Single pole "D" curve MCB & safty guard ,LED power indicator,Digital ammeter ,Power cord FRLS 6 sq.mm 3 core 3 meter with rewireable IEC 60309 32A IP44 Industrial 3 pin plug (2P+E). (Colour: RAL 9005 Black),Top entry
Specifications
Input
- Input Plug
- 1Φ, 30A/32A, IEC 60309 (P+N+E), 250VAC, 6hr, IP44
- Voltage
- 1Φ, 250 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power in Plug Type
- 32A 3 pin Industrial plug IP44(2P+E)
- Power Cord
- FRLS, 6 sq.mm, 3 core, 3 meter with 32A 3 pin rewirable industrial plug IP44(2P+E)
- Input Current
- 32A
Output
- Voltage
- 1Φ, 250 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power out Socket Type
- IEC-C13 & IEC-C19 outlet
- Current Operating Range
- 32A
Features
Total no. of outlets30 Nos[IEC-C13 lockable outlet = 18 Nos & IEC-C19 lockable outlet = 12 Nos]
MountingRack-mountable, 0U vertical mounting
Power SourceSingle input power source
Protectionsingle pole 32A “D” curve MCB with safety guard
IndicatorGreen LED indicator
Internal WiringUni-nyvin cable
Mounting BracketSpare × 2 Nos
EarthingExternal earthing provision
Reference StandardIEC 62368-1
Environmental Requirements
- Operating Temperature
- 0 -45°C (Extended up to 60°C)
- Relative Humidity
- 0 – 95 % RH non-condensing
Conformance
- Compliance
- CE, RoHS
Mechanical
- Colour
- Black (RAL 9005)
- Finish
- Texture
- Dimensions (L × W × H)
- (1550 x 45 x 55) mm
- Weight
- approx. 5.2Kg
- Mounting Distance
- 1525mm
- Button Mount Distance
- 1150mm

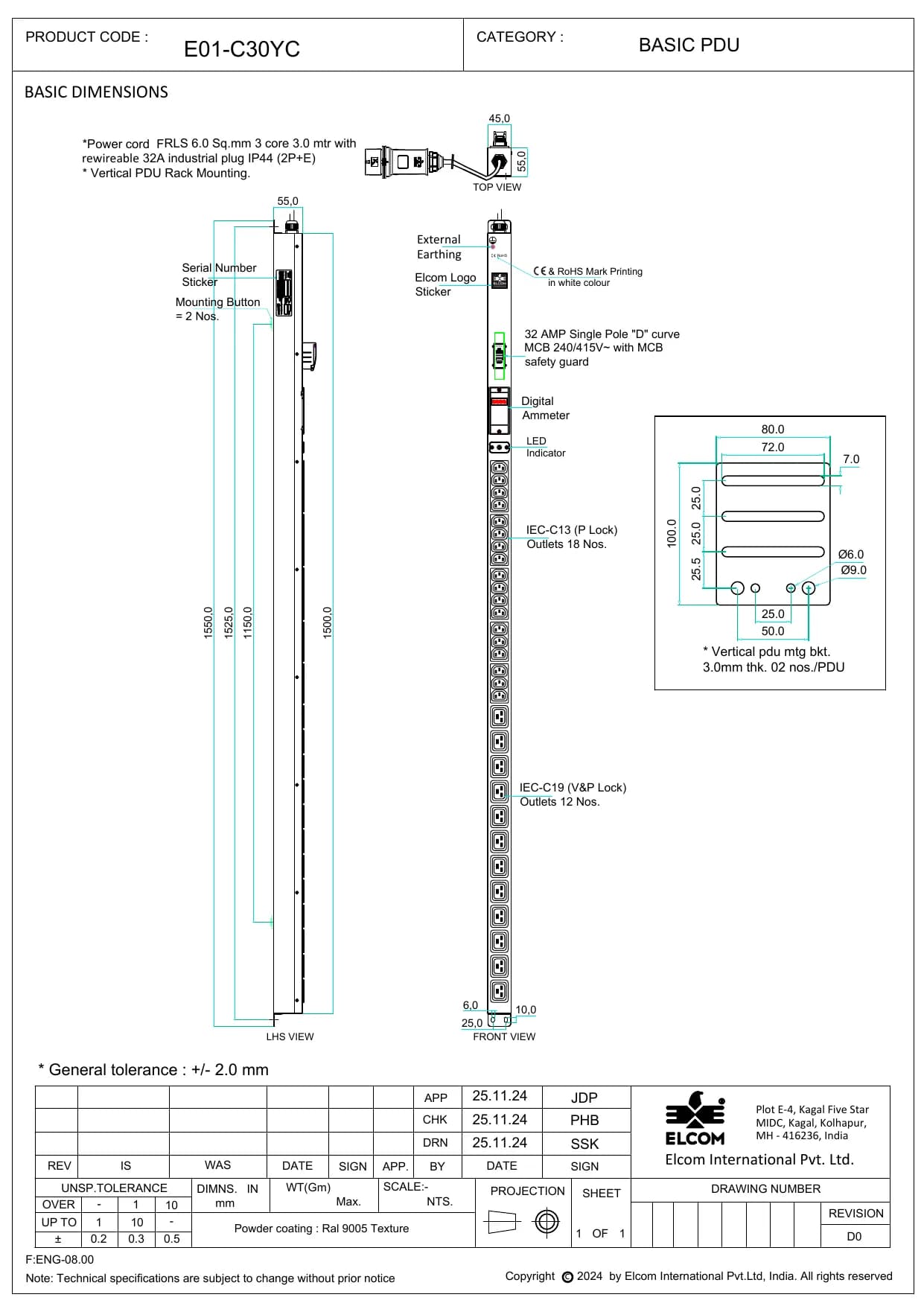

Mechanical drawing
Mechanical drawingDownload
