Basic PDU
E01-D42YB
Outlet Type
42×.png&w=96&q=75)
IEC C13 / C19
IEC C13 / C19Plug Type
IEC 60309 (P+N+E), 250VAC 6 hr IP44Product description
Vertical mounting 63A single phase CE RoHS marked PDU with 42 Outlet (36 Nos. IEC C-13 & 6 Nos. IEC C-19) ,63 A Single pole "D" curve MCB & safty guard ,LED power indicator,Digital ammeter ,Power cord FRLS 16 sq.mm 3 core 3 meter with rewireable IEC 60309 63A IP44 Industrial 3 pin plug (2P+E). (Colour: RAL 9005 Black),Bottom entry
Specifications
Input
- Input Plug
- 1Φ, 60A/63A, IEC 60309 (P+N+E), 250VAC, 6hr, IP67
- Voltage
- 1Φ, 250 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power in Plug Type
- 63A 3 pin Industrial plug IP44(2P+E)
- Power Cord
- FRLS,16 sq.mm, 3 core, 3 meter with 63A 3 pin rewirable industrial plug IP44(2P+E)
- Input Current
- 63A
Output
- Voltage
- 1Φ, 250 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power out Socket Type
- IEC-C13 & IEC-C19 outlet
- Current Operating Range
- 63A
Features
Total no. of outlets42 Nos[IEC-C13 lockable outlet = 30 Nos & IEC-C19 lockable outlet = 12 Nos]
MountingRack-mountable, 0U vertical mounting
Power SourceSingle input power source
Protectionsingle pole 63A “D” curve MCB with safety guard
IndicatorGreen LED indicator
Internal WiringUni-nyvin cable
Mounting BracketSpare × 2 Nos
EarthingExternal earthing provision
Reference StandardIEC 62368-1
Environmental Requirements
- Operating Temperature
- 0 -45°C (Extended up to 60°C)
- Relative Humidity
- 0 – 95 % RH non-condensing
Conformance
- Compliance
- CE, RoHS
Mechanical
- Colour
- Black (RAL 9005)
- Finish
- Texture
- Dimensions (L × W × H)
- (1600 x 65 x 60) mm
- Weight
- approx. 6.9Kg
- Mounting Distance
- 1575mm
- Button Mount Distance
- 1100mm

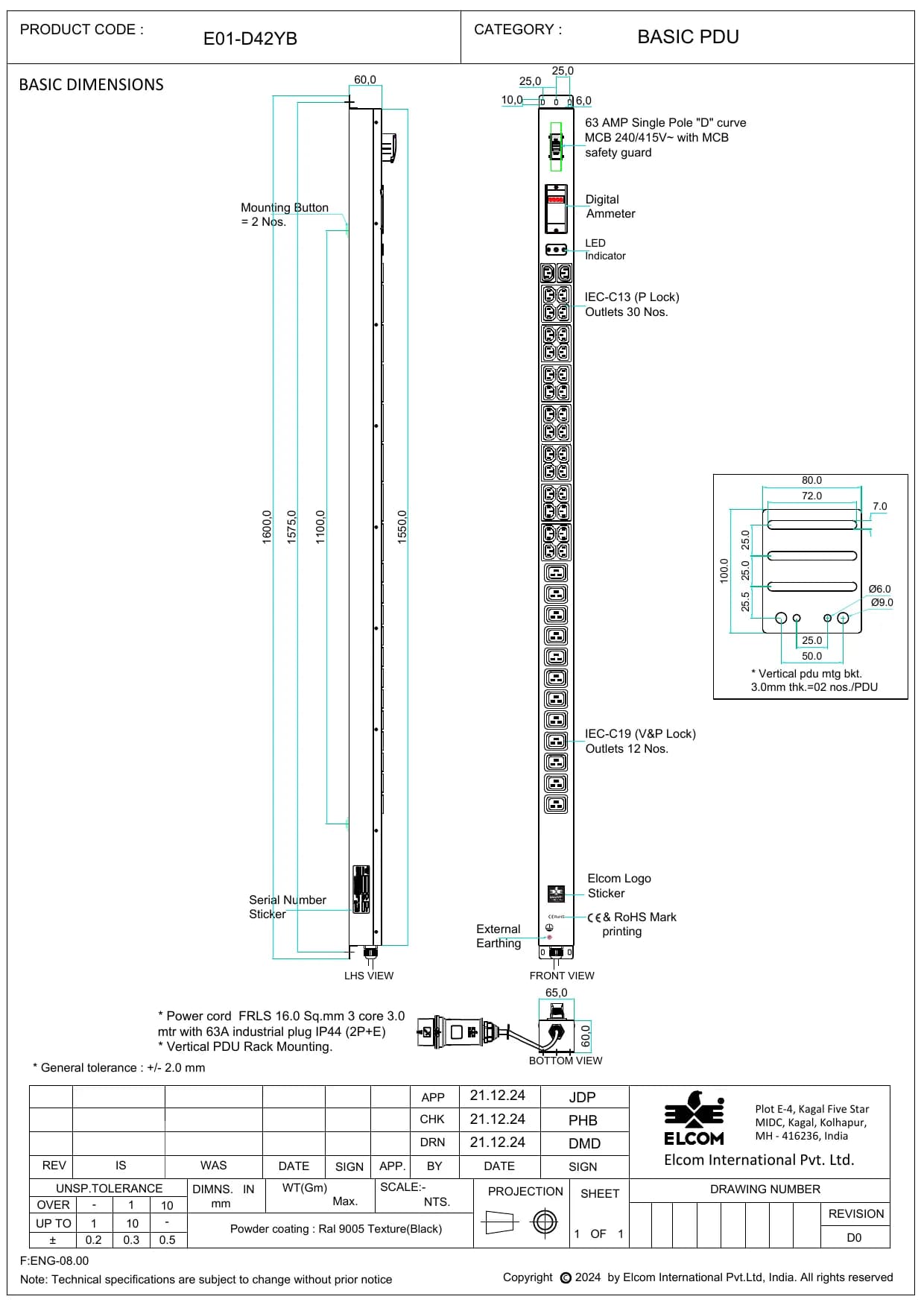

Mechanical drawing
Mechanical drawingDownload
