Basic PDU
E03-C24YE
Outlet Type
24×.png&w=96&q=75)
IEC C13 / C19
IEC C13 / C19Plug Type
IEC 60309 (3P+N+E), 440VAC 6 hr IP44Product description
Vertical mounting 32A Three phase CE RoHS marked PDU with 12nos. IEC C-13 outlet & 12nos. IEC C-19 outlet, Protection with per phase 32A single pole "D" curve MCB with safety guard, with per MCB LED power indicator,Digital Ammeter, Power cord FRLS 6 sqmm 5 core 3 meter with a 32A 5 pin Industrial plug, Colour: Ral 9005 Texture. Top Entry.
Specifications
Input
- Input Plug
- 1Φ, 30A/32A, IEC 60309 (P+N+E), 250VAC, 6hr, IP44
- Voltage
- 3Φ, 440 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power in Plug Type
- 32A 5 pin Industrial plug IP44(3P+N+E)
- Power Cord
- FRLS, 6 sq.mm, 5 core, 3 meter with 32A 5 pin rewirable industrial plug IP44(3P+N+E)
- Input Current
- 32A
Output
- Voltage
- 3Φ, 440 VAC
- Frequency
- 50 Hz / 60 Hz (as per supply input)
- Power out Socket Type
- IEC-C13 & IEC-C19 outlet
- Current Operating Range
- 32A
Features
Total no. of outlets24 Nos[IEC-C13 lockable outlet = 4 Nos/Phase & IEC-C19 lockable outlet = 4 Nos/Phase]
MountingRack-mountable, 0U vertical mounting
Power SourceSingle input power source
Protectionsingle pole 32A “D” curve MCB with safety guard
IndicatorGreen LED indicator
Internal WiringUni-nyvin cable
Mounting BracketSpare × 2 Nos
EarthingExternal earthing provision
Reference StandardIEC 62368-1
Environmental Requirements
- Operating Temperature
- 0 -45°C (Extended up to 60°C)
- Relative Humidity
- 0 – 95 % RH non-condensing
Conformance
- Compliance
- CE, RoHS
Mechanical
- Colour
- Black (RAL 9005)
- Finish
- Texture
- Dimensions (L × W × H)
- (1600 x 55 x 60) mm
- Weight
- approx. 5.5Kg
- Mounting Distance
- 1575mm
- Button Mount Distance
- 1450mm

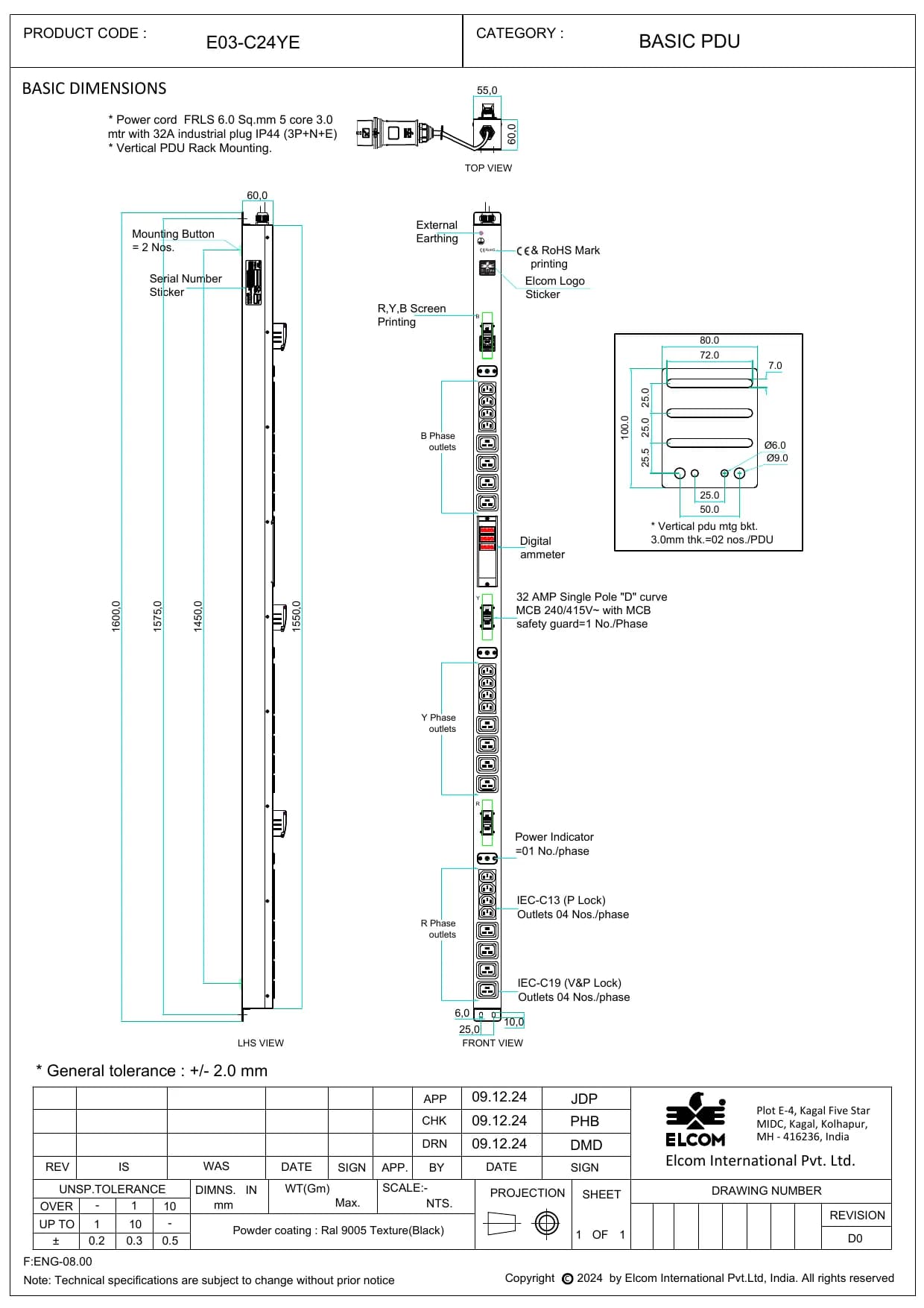

Mechanical drawing
Mechanical drawingDownload
