Individual Metered & Switched
EIS-T6123-EE3TMHX
Certifications
Compliance
Outlet Type
12×
ELGO Combo Max 5-in-1
ELGO Combo Max 5-in-1Plug Type
IEC 60309 (3P+N+E), 440VAC 6 hr IP44Product description
Star IMIS, 32A, 3P, 415-440V, 12 Outlets: Elgo combo connectors- 12Nos, 1.77" LCD display ESS, 6 X 16A Hymag CB, SNMP V1, V2, V3, HTTP, HTTPs, FTP, MODBUS TCP, SMTP, Syslog, RADIUS, LDAP, TACACS+, Dual Ethernet Ports - 1st is (10/ 100/ 1000) Mbps & 2nd is (10/100) Mbps, TLS 1.3,Firmware Upgrade can be performed through Web Browser,CB Trip Detection,10 AWG, 5C, 3-meter power cable with Ind Plug, UL approved, Aluminum chassis, Horizontal V3 iPDU.
Specifications
Input
- Nominal Voltage
- 415 VAC
- Rated Voltage
- 380-440 VAC
- Frequency
- 50 Hz / 60 Hz
- Input Plug
- 3Φ, 30A/32A, IEC 60309 (3P+N+E), 440VAC, 6hr, IP44
- Cord Length
- 3 Mtr
- Input Current
- 32A
- Power Rating
- 21.06 kVA at rated voltage 380 VAC; 24.38 kVA at rated voltage 440 VAC
Output
- Nominal Voltage
- 230 VAC / phase
- Rated Voltage
- 200-250 VAC / phase
- Frequency
- 50 Hz / 60 Hz
- Receptacles Configuration
- ELGO Combo Max 5-in-1 -12 Nos (Outlet combination of C13/C15/C15A/C19/C21)
- Over Current Protection
- Six (6) x 16A Hydraulic Magnetic Circuit Breakers, 10kAIC
Features
Input and Outlet MonitoringVoltage (V), Current (I), Apparent Energy (kVAh), Reactive Energy (kVARh), Active Energy (kWh), Power factor, Apparent Power (kVA), Reactive Power (kVAR), Active Power (kW), Frequency (Hz).
Outlet Metering & SwitchingProvides independent outlet-level monitoring of electrical parameters for precise load analysis and efficient power management. Supports individual outlet ON/OFF switching through Web, SNMP, CLI, and API interfaces, with secure access and local/manual override for reliable and flexible operation.
Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 conforms to Class 1 metering accuracy.
User Interface1.77-inch TFT colour LCD for local status and measurement display. A secure and responsive web-based user interface provides real-time power and environmental monitoring, alarm notifications, and access to historical logs from any standard web browser. Seamless integration with DCIM systems is supported via SNMP and Modbus TCP protocols.
Protocol SupportHTTP(s), SNMP v1, v2c, v3, MODBUS TCP, SFTP, DHCP, IPV4, IPV6 Support, Telnet (CLI), NTP, SMTP, SSH, Redfish API, Syslog, LDAP, RADIUS, TACACS+, TLS 1.3.
NetworkingPrimary Gigabit Ethernet (10/100/1000) port with secondary redundant 10/100 Ethernet port.
CascadingSupport cascading of 16 iPDUs/controllers for centralized monitoring and management via a single network connection. Cascading reduces network port usage and simplifies installation while ensuring reliable data communication between master and slave units.
Threshold SettingUsers can configure threshold limits for low load, near-overload, and overload conditions for input current at phase level. Thresholds can also be defined for lower and upper limits of temperature and humidity sensors. Visual indication is provided via front-panel LEDs, along with an optional audible buzzer alarm.
Notification & AlertsComprehensive alerts delivered over SMTP (email) and SNMP traps. Optional local audible/visual alarms ensure immediate awareness. Real-time detection of circuit breaker trips with local alarms and remote notifications on current threshold exceedance at input level. Configurable notifications for temperature/humidity exceedance, maintaining optimal rack conditions. Supports external sensors with warning/critical levels via SNMP/SMTP. Instant alerts for door open/close, smoke detection, and water sensor via SNMP traps or email. Integrates with DCIM for automated responses.
Firmware UpgradeSupports remote firmware upgrades over HTTPS with dual LAN ports for zero-downtime access. Local USB upgrades enable offline deployment in secure environments.
Compatible SensorsTemperature, Humidity, Dew Point, Air Flow, Water Sensor, Smoke Detection and Door Position.
Data loggingEmbedded non-volatile memory logs key metrics including voltage, current, power (kW/VA), energy (kWh), power factor, frequency, and events with timestamps. Supports data export via CSV for analysis; retention up to 365 days or 1000+ records.
Outlet FeaturesElgo Series outlet/Receptacles combination of C13/C15/C15A/C19/C21 as per IEC 61984/ IEC 60320 and CE, TUV, UL, CSA certified. E-lock provision for standard power cord locking. Alternate Phase Receptacles per branch. (Black – Grey – White)
Environmental Requirements
- Maximum Operating Temperature
- 60°C
- Relative Humidity
- 95% RH non-condensing
Conformance
- Certification
- UL, cULus
- Compliance
- CE
- Environmental
- RoHS
- Standards
- IEC 62368-1
Mechanical
- Dimensions (H × W × D)
- 60mm x 482.6mm x 250mm / 2.36" x 19" x 9.84"
- Weight
- 4.9 Kg (Approximate)
- Toolless Mounting — Centre to Centre
- 465mm / 18.30"
- Material
- Aluminium
- Chassis Colour
- RAL 9005
- Mounting Configuration
- 2RU / Horizontal
- Shipping Dimensions
- 180mm x 540mm x 490mm / 7.09" x 21.26" x 19.29" (Approximate)
- Shipping Weight
- 7.9 Kg (Approximate)

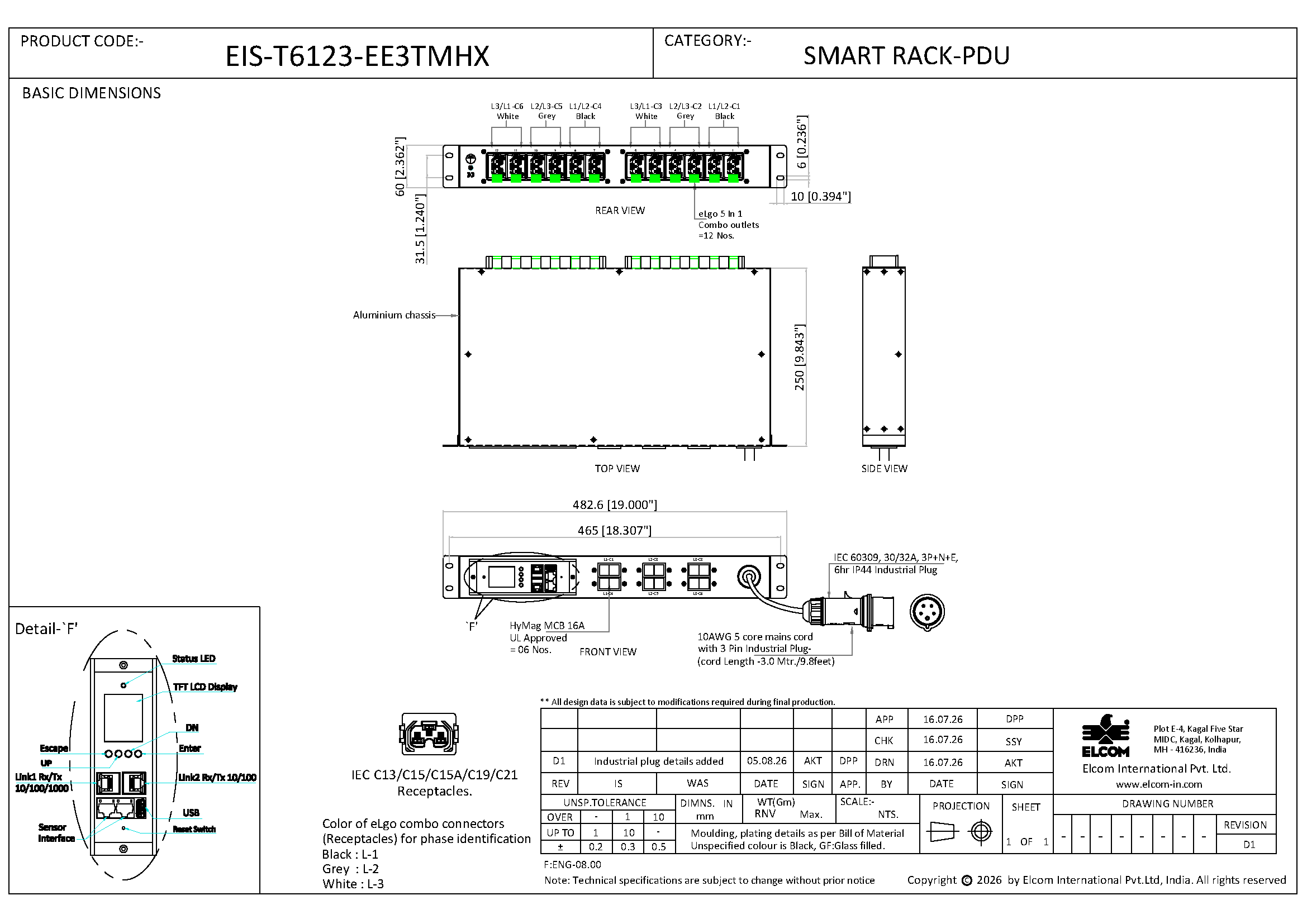

Mechanical drawing
Mechanical drawingDownload
