Individual Metered & Switched

EIS-TQ36X-2E3VDVX

Certifications

Compliance

Outlet Type

36×

ELGO Combo Max 5-in-1

Plug Type

NEMA CS8365/ CS8365L

Product description

Delta IMIS with Input level monitoring, 50A derated 40A, 208V, 3P, 36 Outlet: Elgo combo connectors-36 Nos,1.77" LCD display, 6 X 20A 2P Hymag CB, SNMP V1, V2, V3, HTTP, HTTPs, FTP, MODBUS TCP, SMTP, Syslog, RADIUS, LDAP, TACACS+, Dual Ethernet Ports - 10/100/1000 Mbps & 10/100 Mbps, TLS 1.3, Firmware upgrade and log export can be performed through Web Browser, CB Trip Detection, 8 AWG 4C Type W 3-meter power cable with Nema CS8365/CS8365L plug with 45 Degree Angled Infeed (top feed)cable entry, Aluminum fabrication Red color chassis, UL approval Vertical V3 iPDU.

Specifications

Input

Nominal Voltage: 208 VAC
Rated Voltage: 208 VAC
Frequency: 50 Hz / 60 Hz
Input Plug: 3Ф, 50 Amps, NEMA CS8365/ CS8365L (3W+G)
Cord Length: 3 Mtr, 45° Angled top feed
Input Current: 50A derated 40A
Power Rating: 14.41 kVA at rated voltage 208 VAC

Output

Nominal Voltage: 208 VAC / phase
Rated Voltage: 208 VAC / phase
Frequency: 50 Hz / 60 Hz
Receptacles Configuration: ELGO Combo Max 5-in-1, 36 Nos (C13 / C15 / C15A / C19 / C21)
Over Current Protection: Six (06) x 20A Double pole Hydraulic Magnetic Circuit Breakers, 10kAIC

Features

Input and Outlet MonitoringVoltage (V), Current (I), Apparent Energy (kVAh), Reactive Energy (kVARh), Active Energy (kWh), Power factor, Apparent Power (kVA), Reactive Power (kVAR), Active Power (kW), Frequency (Hz)

Outlet Metering & SwitchingProvides independent outlet-level monitoring of electrical parameters for precise load analysis and efficient power management. Supports individual outlet ON/OFF switching through Web, SNMP, CLI, and API interfaces, with secure access and local/manual override for reliable and flexible operation. Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 conforms to Class 1 metering accuracy.

User Interface1.77-inch TFT colour LCD for local status and measurement display. A secure and responsive web-based user interface provides real-time power and environmental monitoring, alarm notifications, and access to historical logs from any standard web browser. Seamless integration with DCIM systems is supported via SNMP and Modbus TCP protocols

Protocol SupportHTTP(s), SNMP v1, v2c, v3, MODBUS TCP, SFTP, DHCP, IPV4, IPV6 Support, Telnet (CLI), NTP, SMTP, SSH, Redfish API, Syslog, LDAP, RADIUS, TACACS+, TLS 1.3

NetworkingPrimary Gigabit Ethernet (10/100/1000) port with secondary redundant 10/100 Ethernet port

CascadingSupport cascading of 16 iPDUs/controllers for centralized monitoring and management via a single network connection. Cascading reduces network port usage and simplifies installation while ensuring reliable data communication between master and slave units

Threshold SettingUsers can configure threshold limits for low load, near-overload, and overload conditions for input current at phase level. Thresholds can also be defined for lower and upper limits of temperature and humidity sensors. Visual indication is provided via front-panel LEDs, along with an optional audible buzzer alarm.

Notification & AlertsComprehensive alerts delivered over SMTP (email) and SNMP traps. Optional local audible/visual alarms ensure immediate awareness. Real-time detection of circuit breaker trips with local alarms and remote notifications on current threshold exceedance Configurable notifications for temperature/humidity exceedance, maintaining optimal rack conditions. Supports external sensors with warning/critical levels via SNMP/SMTP. Instant alerts for door open/close, smoke detection, and water sensor via SNMP traps or email. Integrates with DCIM for automated responses

Firmware UpgradeSupports remote firmware upgrades over HTTPS with dual LAN ports for zero-downtime access. Local USB upgrades enable offline deployment in secure environments

Compatible SensorsTemperature, Humidity, Dew Point, Air Flow, Water Sensor, Smoke Detection and Door Position

Data loggingEmbedded non-volatile memory logs key metrics including voltage, current, power (kW/VA), energy (kWh), power factor, frequency, and events with timestamps. Supports data export via CSV for analysis; retention up to 365 days or 1000+ records.

Outlet FeaturesElgo Series outlet/Receptacles combination of C13/C15/C15A/C19/C21 as per IEC 61984/ IEC 60320 and CE, TUV, UL, CSA certified. E-lock provision for standard power cord locking. Alternate Phase Receptacles per branch. (Black – Grey – White)

Environmental Requirements

Maximum Operating Temperature: 60°C
Relative Humidity: 95% RH non-condensing

Conformance

Certification: UL, cULus
Compliance: CE
Environmental: RoHS
Standards: IEC 62368-1

Mechanical

Dimensions (H × W × D): 1850mm x 56mm x 75mm / 72.83” x 2.20” x 2.95”
Weight: 9.3 Kg (Approximate)
Toolless Mounting — Centre to Centre: 1555.7mm / 61.25”
Mounting Configuration: Zero U / Vertical
Material: Aluminium
Colour: RAL PO Red
Shipping Dimensions: 1950mm x 230mm x 120mm / 76.77" x 9.06" x 4.72" (Approximate)
Shipping Weight: 13.6 Kg (Approximate)

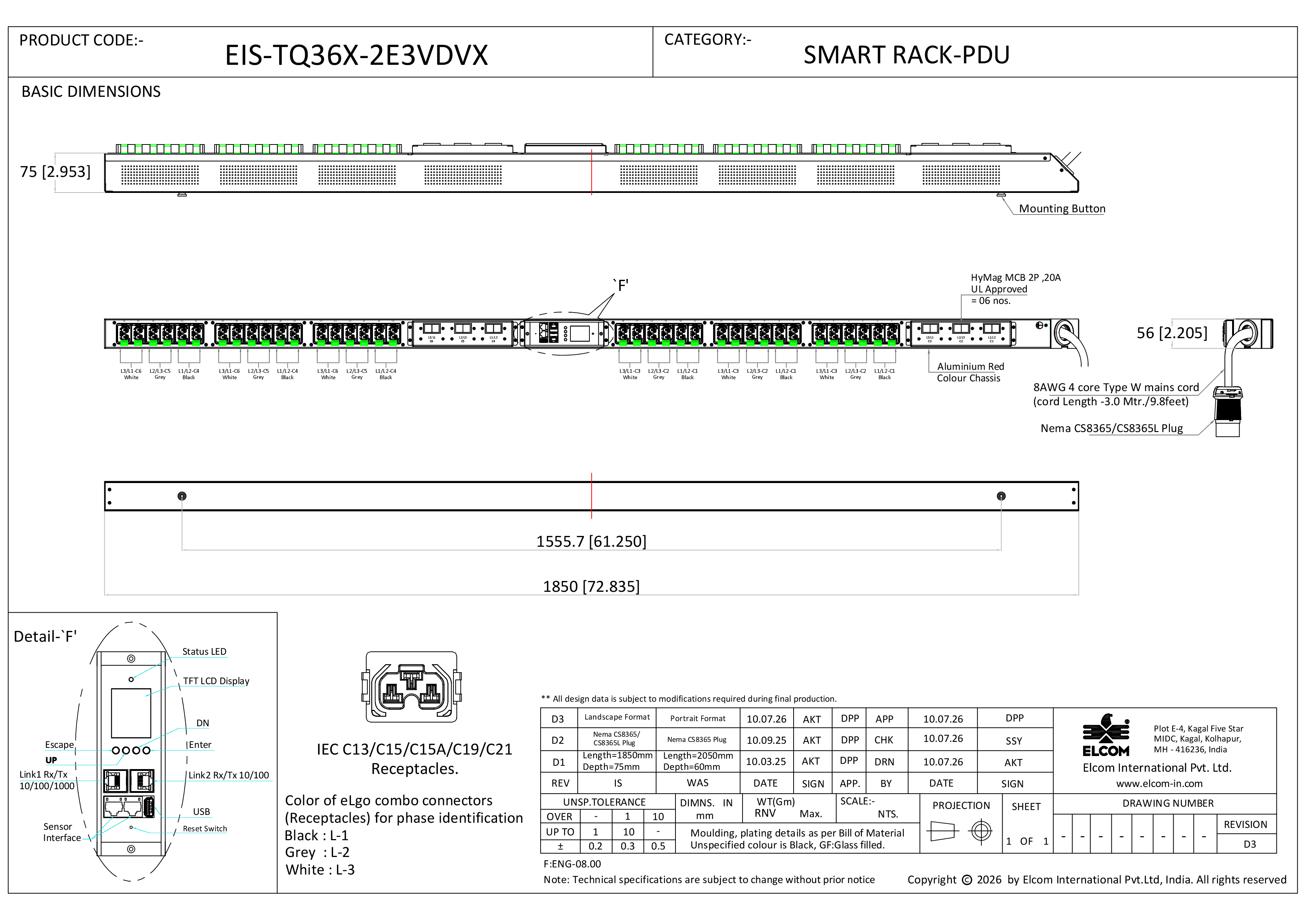

Mechanical drawing

Mechanical drawingDownload
